This is a simplified, large-print manual for the Shark Vertex DuoClean (AZ2002). It covers everything you need to know to set up, use, and maintain your vacuum.
A simplified, senior-friendly manual for the Shark Vertex DuoClean upright vacuum. Covers assembly, basic operation, filter maintenance, and troubleshooting.
- Symptoms: New Vertex owner needing setup help, Lost the original manual, Want large print instructions
- Tools: none
- Difficulty: Easy
PART 1: ASSEMBLY
What’s In The Box
- Main vacuum body
- Handle (attaches to body)
- Floor nozzle (DuoClean head)
- Crevice tool
- Upholstery brush
- User manual
Assembly Steps
- Attach the handle to the main body. It clicks into place.
- Connect the floor nozzle to the bottom of the body.
- No tools needed. All parts snap together.
PART 2: USING YOUR VERTEX
Power On
- Plug the cord into a wall outlet.
- Press the Power Button on the handle.
- The vacuum turns on. Headlights will illuminate.
Switching Modes
- Floor/Carpet Switch: Located on the floor nozzle.
- Use “I” for hard floors.
- Use “II” for carpets.

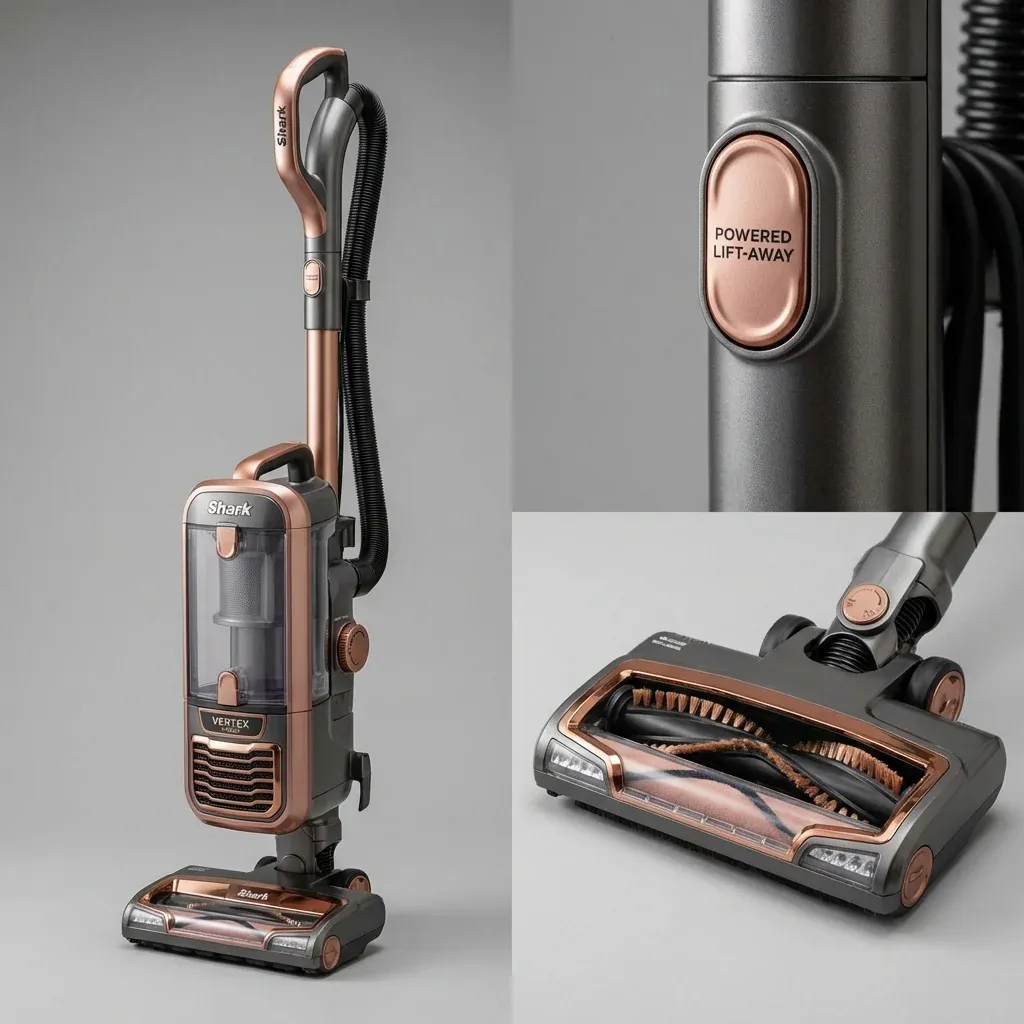

Using Lift-Away
- Press the Lift-Away Button on the body.
- Lift the canister (motor + bin) off the floor nozzle.
- Use the hose and attachments for stairs, upholstery, or ceilings.
PART 3: MAINTENANCE
Empty the Dust Bin
- Turn off and unplug the vacuum.
- Press the Dust Bin Release button.
- Remove the bin.
- Hold over a trash can and press the bottom release to empty.
Clean the Filters
The Vertex has two filters:
- Foam & Felt Filter: Located inside the dust bin area.
- HEPA Filter: Located at the top exhaust.
How to Clean:
- Remove filters.
- Rinse under cool water.
- Let dry completely (24 hours).
- Reinstall.
Replace filters every 12 months.
Clean the Brush Roll
- Flip the vacuum over.
- Remove the brush roll cover.
- Lift out the brush rolls (front soft roller, rear PowerFins).
- Remove hair and debris.
- Reinstall.
PART 4: TROUBLESHOOTING
| Problem | Cause | Solution |
|---|---|---|
| No suction | Full bin or clogged filter | Empty bin, wash filter |
| Brush not spinning | Hair wrapped around roller | Clear hair, check belt |
| Vacuum won’t turn on | Not plugged in | Check cord and outlet |
| Overheating/shuts off | Clogged airway | Clear all hoses and filters |
