Shark Navigator Suction Loss: 5 Common Causes and Fixes

It’s a common story: you’re vacuuming the living room, but the crumbs just aren’t disappearing like they used to. Your Shark Navigator is a workhorse, but when the suction drops, it feels like you’re just pushing dirt around. Don’t worry, you typically don’t need a new vacuum—you just need a few minutes of maintenance.

---

Why Is Your Shark Navigator Losing Suction?

Suction loss happens when the airflow through the vacuum is restricted. Think of it like a straw; if there’s a hole in the side or a piece of ice stuck in the middle, you can’t drink your soda. In a vacuum, the “ice” is usually hair or a stray sock, and the “hole” is often a dirty filter or a loose bin seal.

Most suction issues come down to these three areas:

1. Dirty Filters: Blocked pores in the foam or HEPA filters.
2. Obstractions: Clumps of hair or debris in the hose or brush head.
3. Air Leaks: A dust cup that isn’t clicked in properly.

---

Step 1: The Easiest Fix (Check the Filters)

Before you start taking things apart, check your filters. Shark vacuums rely on heavy airflow, and even a little bit of dust buildup can significantly drop the power.

Shark Vertex AZ2002 Simplified Manual (Large Print)

1. Locate the Pre-Motor Filters: These are under the dust cup. Lift the cup off and you’ll see a white foam filter and a felt filter.

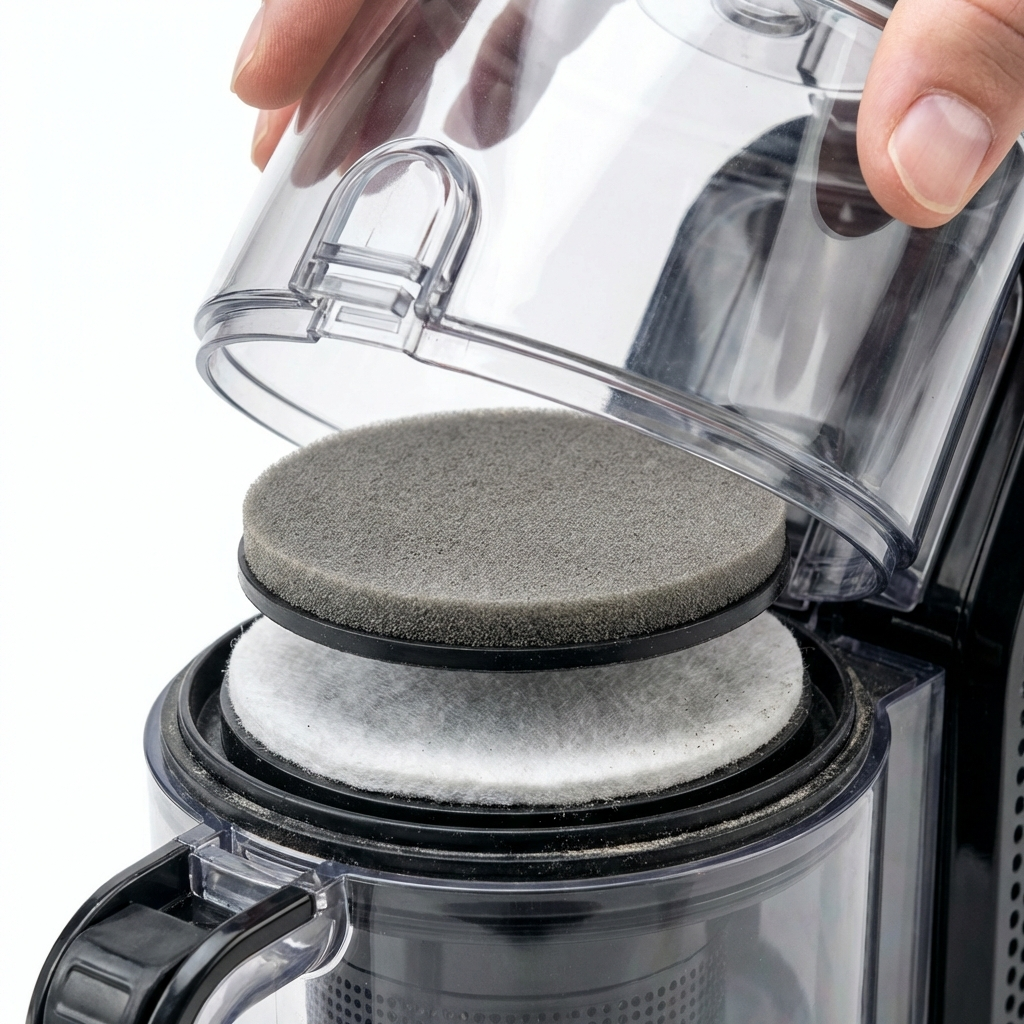

Figure 1: Lifting the dust cup reveals the foam and felt filters.

2. Inspect for Grey/Black Dust: If they look dark, they are clogged.
3. Wash with Water: Rinse them under cold water until the water runs clear.
4. Dry Completely: This is the most important part. Let them air dry for at least 24 hours. Never put wet filters back in your Shark.

Tip: If you haven’t washed your filters in 3 months, this is almost certainly the cause of your suction loss.

---

Step 2: The Mechanical Check (Look for Blockages)

If the filters are clean but the suction is still weak, you likely have a “clog” somewhere in the system.

1. Check the Floor Nozzle: Flip the vacuum over and look into the intake. Use your flashlight to see if hair is matted in the entrance.
2. Inspect the Lower Hose: This is the small, ribbed hose near the bottom. It often gets small pebbles or toys stuck in it.
3. Test the Main Hose: Detach the long hose from the wand. Drop a coin or a small marble through it. If it doesn’t fall out the other end, you’ve found your clog.
4. Use a Broom Handle: If there’s a clog in the wand, gently push a broom handle through to force the debris out.

---

Step 3: Check the Dust Cup Seal

Modern vacuums need an airtight seal to maintain suction. If your dust cup isn’t seated perfectly, air escapes and the suction at the floor drops to zero.

1. Empty the Dust Cup: A full cup (past the “Max Fill” line) reduces performance.
2. Clean the Gasket: Wipe the rubber seal at the bottom of the dust cup with a damp cloth. Debris here can prevent a tight fit.
3. Click it In: When you put the cup back, listen for the “click” on both the top and bottom latches.

---

When to Call for Help

If you have cleaned every filter, removed every clog, and ensured the bin is sealed tight, but the motor feels “weak” or makes a high-pitched whistling sound, there might be a problem with the motor fan. At this point, it’s best to contact a repair specialist.

You can reach Shark Support at 1-800-798-7398. If your Navigator is less than 5 years old, it might still be covered under the manufacturer’s warranty.

---

Try these steps first! In 90% of cases, your Shark will be back to full power without costing you a dime.
